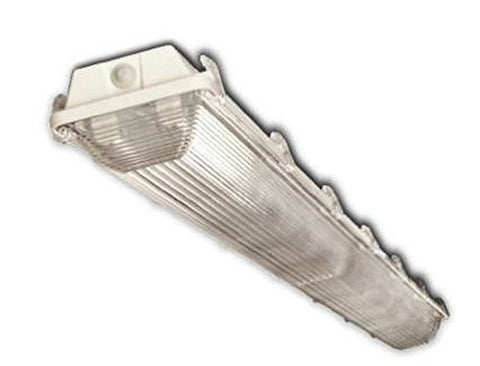

Howard Lighting VSA8A454APSMV000000I VSA8 4 Lamp T5 HO Fluorescent Enclosed Vapor Dust Proof Strip Lighting Fixture NSF IP67

Howard Lighting VSA8A454APSMV000000I VSA8 4 Lamp T5 HO Fluorescent Enclosed Vapor Dust Proof Strip Lighting Fixture NSF IP67

  • $153.00
  • Save $0.01


ContractorsCommercial Input:
The Howard Lighting VSA8 Series vaporproof fluorescent strip comes standard with a UL Listed ballast, and the entire strip is made and tested in the USA. The strip is gasketed to keep dust and moisture out, making it perfect for illuminating car washes, parking garages, and food and beverage manufacturing facilities. And installation is quick thanks to easy access to the wiring compartment and ballast.

Housing:
• One-piece upper body; no seams to crack, break, or leak
• Reinforced fiberglass body is rugged and corrosion resistant
• 5VA Flammability Rating• Clear polycarbonate latches standard
• Fourteen latches for positive lens retention
• Latches designed to accept screws to make enclosure tamper resistant
- Polycarbonate latches accepts #4 - 1/2” screw
- Stainless steel latches accepts #6 - 3/8” screw
• White polyethylene molded end plugs for use as knockouts
• High gloss, baked enamel reflective front

Gasket:
• Closed cell polyester gasket
• Poured gasket seamlessly fills channel for maximum seal
• Gasket has dry skin that will not stick to the mating surface
• High gasket compression recovery ensures a solid seal over life of fixture

Diffuser:
• Injection molded for maximum strength and precise detail
• Lineal prisms on sides reduce glare
• Continuous formed perimeter provides for positive seal
• Materials:

100% Virgin Impact Resistant Acrylic
Long lasting clarity and resistance to weathering

• Acrylic/DR blend for superior impact resistance, long life and clarity
• Ribbed geometry designed for maximum strength
• Continuous formed perimeter provides for positive seal

Installation:
• Shipped fully wired with Howard ballast
• Easy access to wiring compartment and ballast via removable gear tray
• Gear tray tethered to housing by two lanyards for extra safety
• Knockouts on each end
• Spring-mount, stainless steel bracket allows for surface or chain mount
• Brackets Install first, then snap securely onto fixture
• NEC compliant luminaire power disconnect standard

Ballast:
• Electronic, Inherent Thermal Protection, Class P, Sound rated A
• UL Listed

Quality Assurance:
• System Tested, Designed, Approved, and Manufactured by Howard Lighting

Products in Mendenhall, Mississippi.

Applications:


Entrance Lighting

Car Washes

Public Access

Parking Structions

Beverage Industry

Food Processing

Construction Sites

Industrial Lighting


Certifications:
IP67 NSF



  • Metal Halide [HID] Equivalent
    150 Watt HID, 175 Watt HID
  • Mounting Height
    14 - 18 Feet
  • Type of Area
    Hangers & Storage, Industrial & Warehouse, Parking Garage
  • Ballast Factor
    Normal .87-.88
  • Certifications
    IP65 / IP66 / IP67, NSF
  • Number of Lamps
    4 Lamp
  • Dimensions
    100" L x 7.33" W x 4.13" H
  • Length
    100.0"
  • Width
    7.33"
  • Height
    4.13"
  • Lumen Output:
    19,600 lumens
  • Manufacturer
    Howard Lighting
  • Manufacturer's Warranty
    1 Year
  • Part Number
    VSA8A454APSMV000000I
  • Technology
    T5HO Fluorescent
  • Voltage
    Multivolt 120V-277V
  • Wattage
    216 Watt
  • Weight Each
    25.00 lbs
  • Fixture Length
    8 Feet / 96 Inches
  • Bulb Type
    Linear Tube
  • Beam Angle
    Normal
